Constituent Tile add-in using an adaptive card not appearing in Constituent Records

Give Giver

Hi Everyone, my name is Jonathan Gottlieb and I'm running into an issue where my Constituent Tile add-in does not appear in any NXT Constituent Records and my Power Automate Flow with my adaptive card does not run.

Blackbaud/NXT Side:
-My app is connected to the same environment as the constituent records I'm checking

-I have developer level permissions in the team that controls the app

-I have full permissions in Blackbaud Marketplace

-My add-in has the correct Extension point: Constituent Tile Dashboard



Power Automate Side:

-My Flow is on

1. The trigger of my flow is “When an HTTP request is received”

Who can trigger the flow: None

Request Body JSON Schema:

RequestBodySchema.txt

2. Validate a user identity token

User identity token: @{triggerBody()}

Application ID: Matches Application ID (OAuth client_id) in the application that contains addin

3. When Application is saved. i receive the http url and encode it. Adding it here

Raw HTTP URL:
https://defaultd931cb4a398443289fb696d7d7fd51.b0.environment.api.powerplatform.com:443/powerautomate/automations/direct/workflows/ee6bda6be0cf4bf4918daedcb776a533/triggers/manual/paths/invoke?api-version=1&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=dk8YJ9NsOXpjcUSwz_2OuM-c7MjxKo70h2iwGWFQgWk

URL after its encoded:
https%3A%2F%2Fdefaultd931cb4a398443289fb696d7d7fd51.b0.environment.api.powerplatform.com%3A443%2Fpowerautomate%2Fautomations%2Fdirect%2Fworkflows%2Fee6bda6be0cf4bf4918daedcb776a533%2Ftriggers%2Fmanual%2Fpaths%2Finvoke%3Fapi-version%3D1%26sp%3D%252Ftriggers%252Fmanual%252Frun%26sv%3D1.0%26sig%3Ddk8YJ9NsOXpjcUSwz_2OuM-c7MjxKo70h2iwGWFQgWk

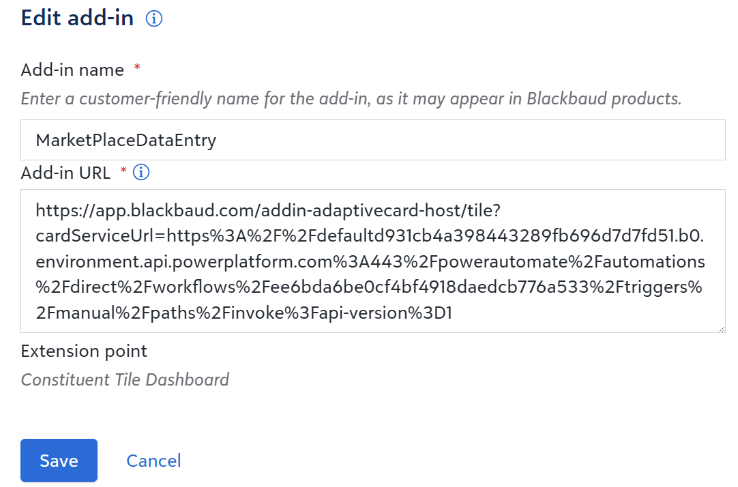

As it appears in Add-in:

4. My adaptive Card JSON is in txt file attached

adaptive_card.txt

5. Request Action has Compose with adaptive card json in Body

Alex Wong

trigger:

Who can trigger the flow? = Anyone

{

    "type": "object",

    "properties": {

        "uit": {

            "type": "string"

        },

        "context": {

            "type": "object",

            "properties": {

                "recordId": {

                    "type": "string"

                }

            }

        }

    }

}

Add-in URL is missing a lot of the encoded string, your add-in URL ended with api-version%3D1

Make sure you include the FULL encoded URL:

https://app.blackbaud.com/addin-adaptivecard-host/tile?cardServiceUrl=FULL_TRIGGER_URL_ENCODED&title=TITLE_ENCODED

Crystal Bruce

Hi @Give Giver Jonathan - I am moving this to Raiser's Edge NXT APIs in hopes of getting an answer from the community. Thanks!

Give Giver

Thank you so much Alex! That resolved my problem. I wasn't using the correct schema to generate the URL, the one you provided worked. And of course, Who can trigger the flow? should have been set to Anyone.

Thanks Again, spent too long thinking it was a permissions problem,

Jonathan
